GCP Provider

The GCP provider allows you to collect billing data from Google Cloud Platform using BigQuery export for analysis in NarevAI.

Prerequisites

• Active Google Cloud Platform account with billing data access
• BigQuery billing export configured
• Service account with appropriate permissions
• BigQuery dataset containing billing export data

Setting Up BigQuery Billing Export

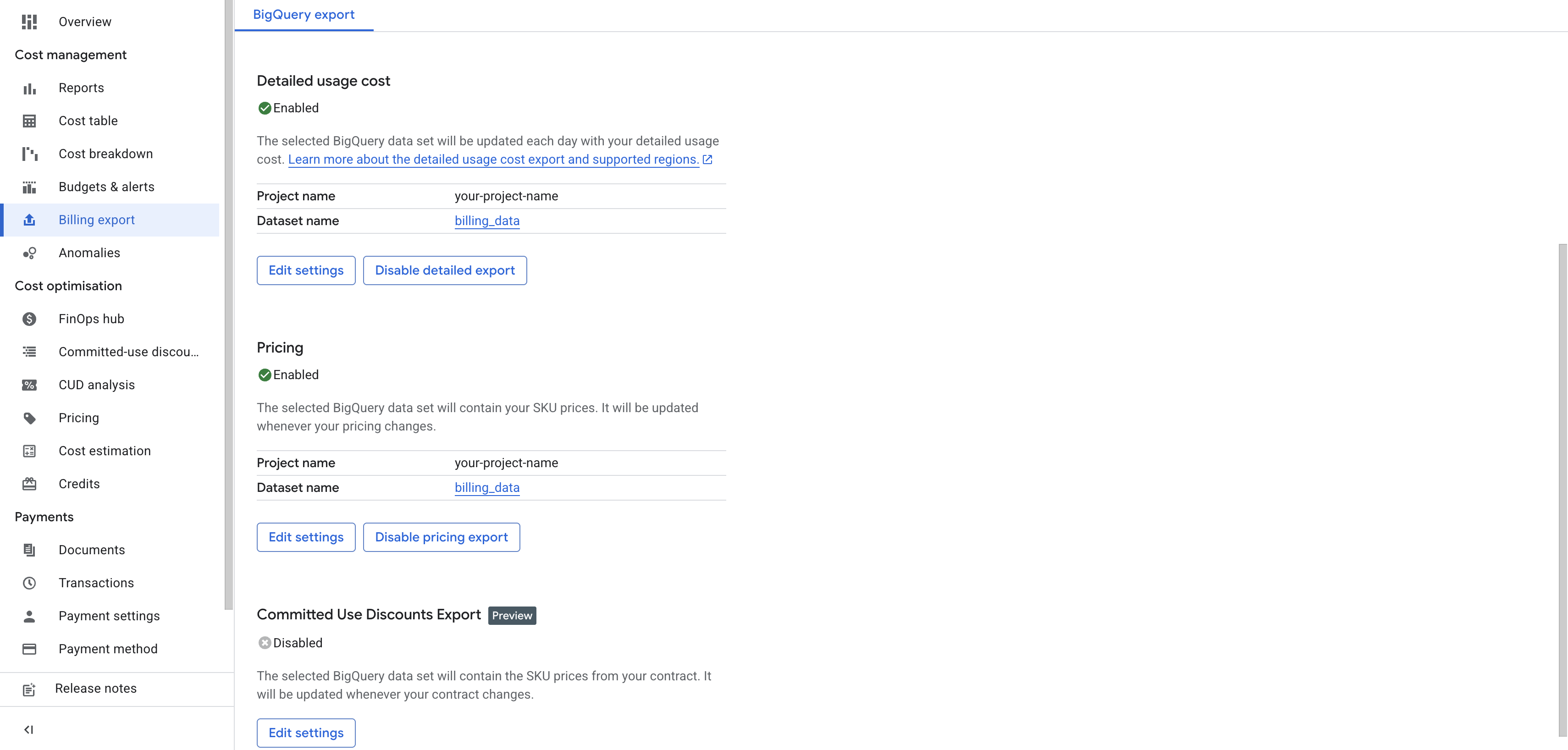

1. Enable BigQuery Billing Export

1. Sign in to the Google Cloud Console
2. Navigate to Billing > Billing export
3. Go to the BigQuery export tab

4. Enable both exports:

• Detailed usage cost data: Click Edit settings and configure
• Pricing data: Click Edit settings and configure

5. Configure your exports:
   • Project: Select the project where you want to store billing data
   • Dataset: Create or select a BigQuery dataset (e.g., billing_export)
   • Enable both detailed usage cost data and pricing data export
6. Click Save for both exports

Both Exports Required

You need both Detailed Billing Export and Price Export enabled to create the FOCUS view. The standard billing export alone is not sufficient.

2. Create FOCUS View (Recommended)

For better compatibility with multi-cloud analysis, Google provides a FOCUS-compliant BigQuery view:

1. Wait 24-48 hours after enabling exports for data to populate
2. Follow one of these guides to create the FOCUS view:
   • Google's official guide: FOCUS BigQuery View guide
   • FinOps Foundation guide: Creating FOCUS Views in BigQuery (comprehensive step-by-step)
3. Use the provided SQL template, replacing dataset paths with your actual ones
4. Save the view with a name like gcp_billing_focus_v1

3. Note Your Configuration

After setup, note these details for NarevAI configuration:

• Project ID: Where your billing data is stored
• Dataset ID: The BigQuery dataset name (e.g., billing_export)
• FOCUS view name: The name you gave your FOCUS view (e.g., gcp_billing_focus_v1)

Service Account Setup

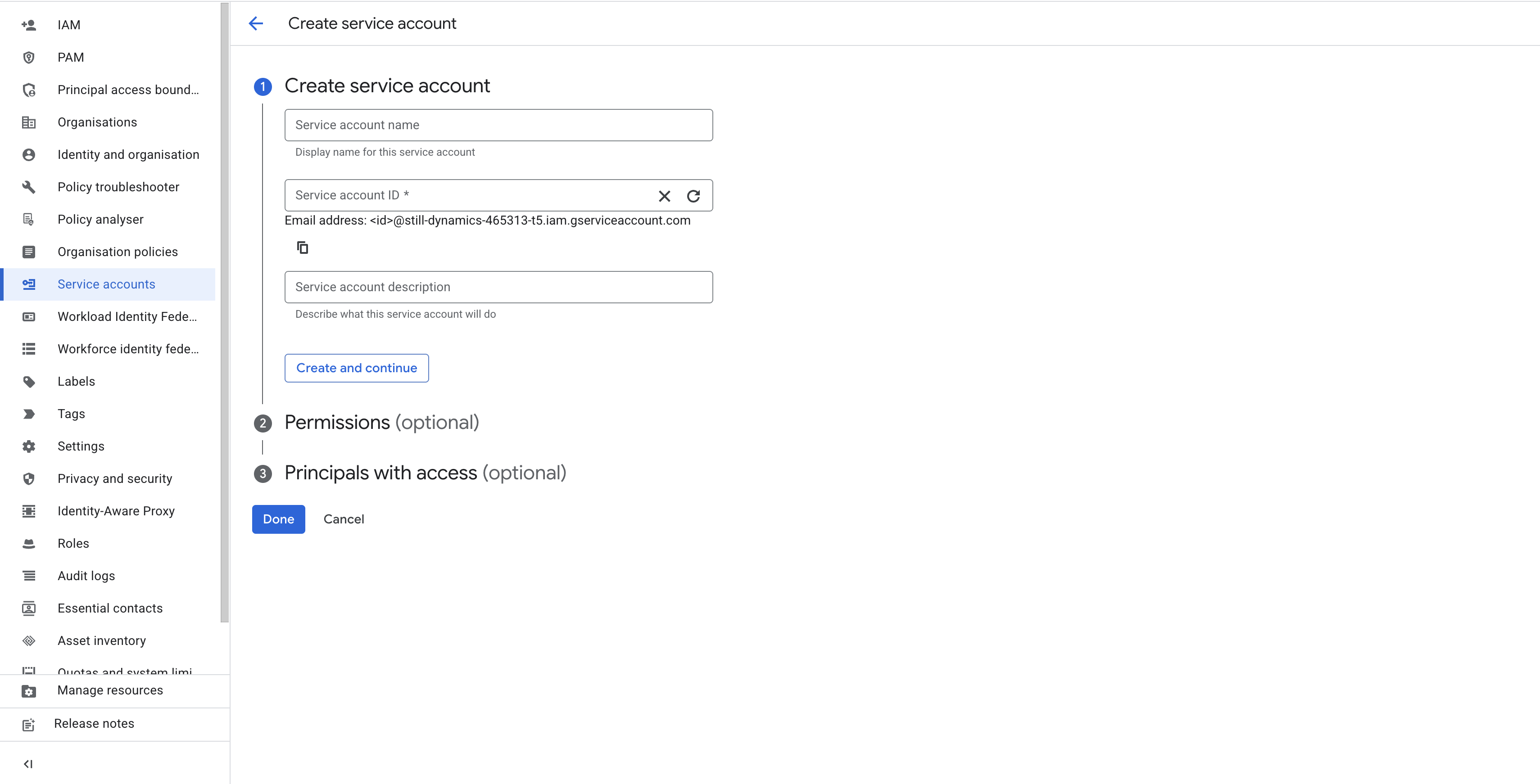

1. Create Service Account

1. Go to IAM & Admin > Service Accounts in the Google Cloud Console

2. Click Create Service Account
3. Provide details:
   • Service account name: narevai-billing-reader
   • Description: Service account for NarevAI billing analysis
4. Click Create and Continue

2. Assign Permissions

Assign the following roles to your service account:

• BigQuery Data Viewer: To read billing data from BigQuery
• BigQuery Job User: To execute queries
• BigQuery Metadata Viewer: To access dataset and table metadata

3. Create and Download Key

1. In the service accounts list, click on your newly created service account
2. Go to the Keys tab
3. Click Add Key > Create new key
4. Select JSON format
5. Click Create and save the downloaded JSON file securely

Adding GCP Provider in NarevAI

Step 1: Navigate to Connect

1. In the NarevAI sidebar, under Data Connections, click Connect
2. You'll see the "Provider Integrations" page with available providers

Step 2: Select GCP Provider

1. Find the Google Cloud Platform card in the provider grid
2. Click the Connect button on the GCP card
3. The GCP configuration dialog will open

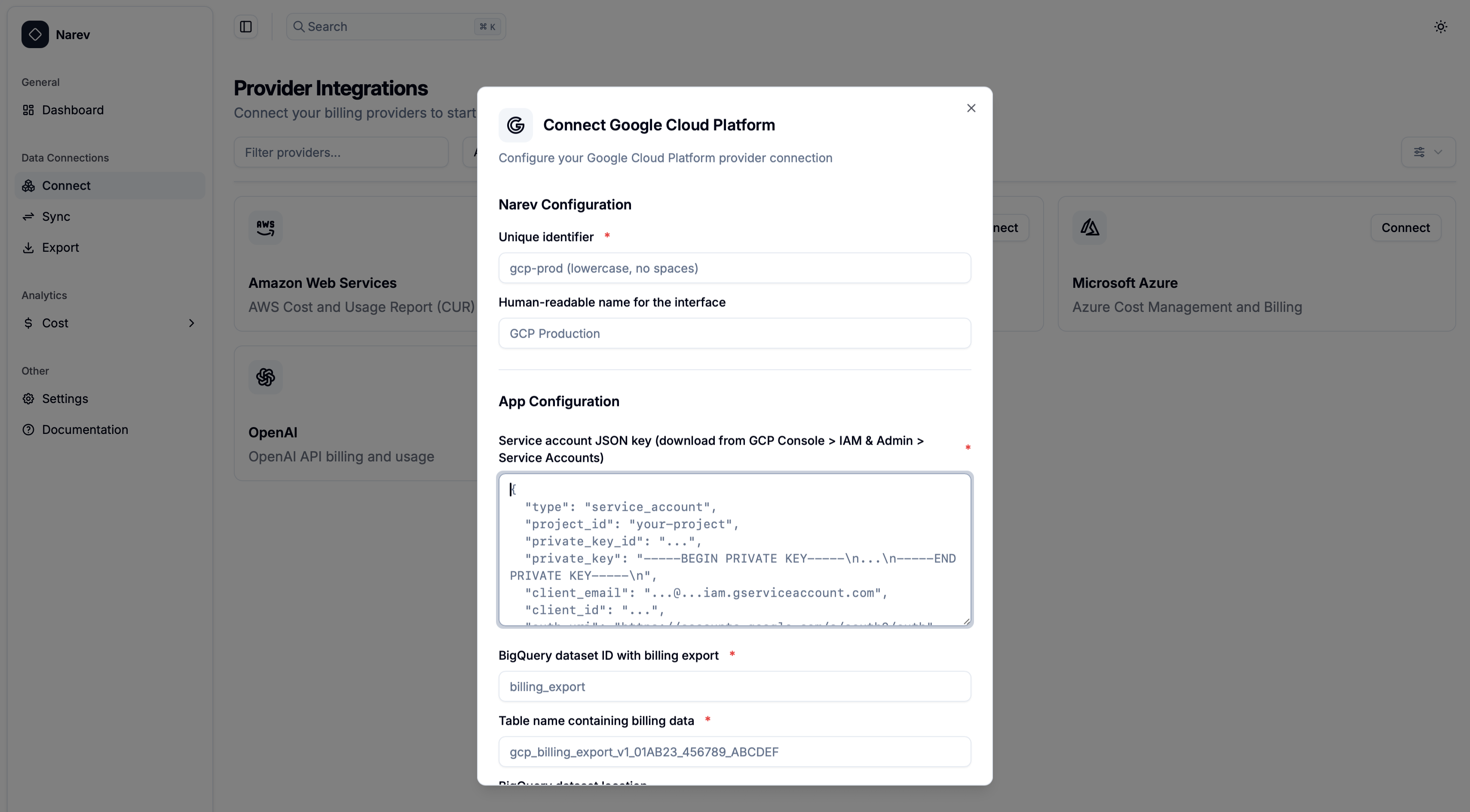

Step 3: Configure GCP Provider

Narev Configuration

Provider Name ✅ Required

• Unique identifier (e.g., gcp-prod, company-gcp)
• Format: lowercase letters, numbers, hyphens, underscores only

Display Name (Optional)

• Human-readable name (e.g., GCP Production, Company GCP)
• Shown in the interface

App Configuration - GCP Credentials ✅ Required

Service Account Credentials ✅

• Service account JSON key from Google Cloud Console
• Input options:
  • Paste JSON: Copy and paste the entire JSON content
  • Upload File: Upload the downloaded .json file
• Must include fields like type, project_id, private_key, client_email

Service Account Security

The service account JSON file contains a private key. Store it securely and never share it publicly.

Provider-Specific Configuration

Dataset ID ✅ Required

• BigQuery dataset with billing export (e.g., billing_export)
• Must match the dataset you configured in Google Cloud

Table Name ✅ Required

• FOCUS view name (e.g., gcp_billing_focus_v1)
• Must match the FOCUS view you created in BigQuery

Step 4: Connect Provider

1. Review all configuration settings
2. Click the Connect button
3. NarevAI will test the connection to your BigQuery dataset
4. If successful, the provider will be added and appear as "Connected"
5. You can now sync billing data from this GCP account

Connection Test includes:

• Service account credentials validation
• BigQuery dataset access verification
• Table/view existence check
• Data query permissions test

Configuration Examples

Basic Setup

Provider Name: gcp-main
Display Name: Main GCP Account
Service Account JSON: {complete JSON object}
Dataset ID: billing_export
Table Name: gcp_billing_focus_v1
Location: US

Multi-Regional Setup

Provider Name: gcp-eu
Display Name: GCP European Operations
Service Account JSON: {complete JSON object}
Dataset ID: eu_billing_export
Table Name: gcp_billing_focus_v1
Location: EU

Custom View Name

Provider Name: gcp-prod
Display Name: GCP Production Environment
Service Account JSON: {complete JSON object}
Dataset ID: billing_export
Table Name: my_custom_focus_view
Location: us-central1

Service Account JSON Structure

Your service account JSON should look like this:

{
  "type": "service_account",
  "project_id": "your-project-id",
  "private_key_id": "key-id",
  "private_key": "-----BEGIN PRIVATE KEY-----\n...\n-----END PRIVATE KEY-----\n",
  "client_email": "narevai-billing-reader@your-project.iam.gserviceaccount.com",
  "client_id": "client-id",
  "auth_uri": "https://accounts.google.com/o/oauth2/auth",
  "token_uri": "https://oauth2.googleapis.com/token",
  "auth_provider_x509_cert_url": "https://www.googleapis.com/oauth2/v1/certs",
  "client_x509_cert_url": "https://www.googleapis.com/oauth2/v1/certs/..."
}

Testing the Connection

After configuring your provider:

1. Click Test Connection before saving
2. The system will verify:
   • Service account credentials validity
   • BigQuery dataset access permissions
   • Table existence and structure
   • Query execution permissions
3. Successful test shows dataset details and row count
4. Failed test will show specific error messages to help troubleshoot

Common Test Results

Success Response

Successfully connected to BigQuery
Project ID: your-project-id
Dataset ID: billing_export
Table Name: gcp_billing_focus_v1
Location: US
Row Count: 150,432
Table Size: 245.7 MB

Dataset Not Found

Dataset 'billing_export' not found in project 'your-project-id'

• Solution: Verify the dataset ID and ensure billing export is configured

Permission Denied

Permission denied - check service account permissions

• Solution: Ensure your service account has BigQuery Data Viewer and Job User roles

Authentication Failed

Authentication failed - check credentials

• Solution: Verify your service account JSON is complete and valid

Supported Features

The GCP provider supports:

• ✅ BigQuery billing export data
• ✅ FOCUS format compatibility
• ✅ Detailed cost breakdown by service and resource
• ✅ Resource hierarchy analysis (organization/folder/project)
• ✅ Labels and tags for cost attribution
• ✅ Multi-regional dataset support

Troubleshooting

Service Account Issues

• Ensure the service account has the required BigQuery permissions
• Verify the JSON file is complete and contains all required fields
• Check that the service account email format is correct

BigQuery Access Issues

• Confirm billing export is enabled and data is being generated
• Verify the dataset and table names match exactly (case-sensitive)
• Ensure the dataset location matches your configuration

Data Export Problems

• Check if billing export is actively generating data (may take 24-48 hours initially)
• Verify your GCP project has billing enabled
• Confirm you have sufficient billing data for the time period

Permission Errors

• BigQuery Data Viewer: Required to read billing data
• BigQuery Job User: Required to execute queries
• BigQuery Metadata Viewer: Required to access dataset information

Authentication Failures

• Verify the service account JSON format is valid
• Check that the private key in the JSON is complete and properly formatted
• Ensure the service account hasn't been deleted or disabled

Regional Configuration

• Verify the BigQuery dataset location matches your provider configuration
• Some features may not be available in all regions
• Cross-regional access may have additional latency

Finding Your FOCUS View Name

To find your FOCUS view name in BigQuery:

1. Go to BigQuery in the Google Cloud Console
2. Navigate to your billing dataset
3. Look for your FOCUS view (typically named gcp_billing_focus_v1 or similar)
4. Use this exact view name in your NarevAI provider configuration

FOCUS View Required

NarevAI requires a FOCUS-compliant BigQuery view for GCP billing data. You must create this view using Google's provided SQL template before configuring the provider. Raw billing export tables are not supported.

Data Collection

Once configured, the GCP provider will collect:

• Usage metrics: Service usage, resource consumption, API calls
• Cost data: On-demand pricing, sustained use discounts, committed use discounts
• Resource information: Compute instances, storage usage, network traffic
• Project hierarchy: Organization, folder, and project-level cost attribution
• Labels and tags: Custom labels for cost allocation and analysis
• Time-series data: Daily cost and usage patterns

Data collection runs automatically based on your configured schedule and will appear in the NarevAI dashboard after the first successful sync. GCP billing data is typically updated multiple times per day as usage occurs.
